Specifications

Name: AXL.LDM.002
Brand: AXL Imperial
SKU: AXL.LDM.002

PDF

AXL.LDM.001

Controller

Display

TFT 5.5 inch LCD

Minimum Display Unit

0,01 to 100μm (7-level selectable)

Diplay Range

(plus minus) 99.99999 to (plus minus) 9999.9 mm

Measurement Position Monitor

Monitor Image

Tolerance Check Output Display

5-level LCD indicator

Alarm output

NPN open -collector output

5-level Comparator Output

NPN open-collector output for OUT1

Comparator Ready Output

NPN open-collector output for OUT2

Strobe Output

NPN open-collector output for OUT3

Synchronous Input

Non - voltage input for OUT1

Reset Input

Non - voltage input for OUT2

Auto-Zero Input

Non - voltage input for OUT3

Program Selection Input

Non-voltage input x 4 inputs

Statistical Processing Input

Non - voltage input for OUT1

Analog Output

10V x 2 outputs

Sub Mode

5-level comparator output

NPN open-collector output for OUT2

Comparator ready output

NPN open-collector output for OUT2

Strobe output

NPN open-collector output for OUT2

Statistical processing output

NPN open-collector output x 2 outputs

Function output

Selectable from focus, area check, and differential, NPN open-collector output x 2 outputs

BCD Mode

BCD output

Measurement data output (Sign + 7 digits), OUT1/OUT2 selectable, NPN open-collector output

BCD selection output

NPN open-collector output

BCD selection input

Non-voltage input

Synchronous Input

Non - voltage input for OUT2

Reset Input

Non - voltage input for OUT2

Auto-Zero Input

Non - voltage input for OUT2

Statistical Processing Input

Non - voltage input for OUT2

RS-232C Interface

Measurement data output and control I/O, printer (Baud rate can be selected uo to 115200 bps)

Video Output

Conforming to the NTSC system (PIN connector)

Major Functions

Simultaneous measurement, Area designation, Calculation, Averaging, Calibration, 16-program memory, Measurement modes, Auto-zero, Print-out, Abnormal value elimination, Transparent object measurement, Measurement point display, Group comparison, Unacceptable value history, Trend display, Statistical processing, Mutual interference prevention, Application function, etc.

Power Supply Voltage

24 VDC ±10%

Current Consumption

1.2 A max.

Enclosure Rating

IP64 (Panel surface only)

Ambient Temperature

0 to +40°C

Relative Humidity

35 to 85%, (No condensation)

Measuring Heads

Measuring Range

0,3 - 30mm

Smalest Detectable Object

0,3mm

Light Source

GaN green LED

CCD Scanning Range

approx. 33mm

Measurement Accuracy

(plus minus) 2μm

Repeatability

(plus minus) 0,15μm

Monitor Camera

2400 samples/sec

Enclosure Rating

IP64

Ambient Temperature

0 to +50℃

Relative Humidity

35 to 85%, (No condensation)

The AXL.LDM.001 complies with the following European standards: EMC Directive: EN61326-1D60 Low-voltage directive: EN60825-1 (LED class 1)/EN61010-1 (Overvoltage category II, Pollution degree 2)

Specifications

PDF

AXL.LDM.002

Controller

Display

TFT 5.5 inch LCD

Minimum Display Unit

0,01 to 100μm (7-level selectable)

Diplay Range

(plus minus) 99.99999 to (plus minus) 9999.9 mm

Measurement Position Monitor

Monitor Image

Tolerance Check Output Display

5-level LCD indicator

Alarm output

NPN open -collector output

5-level Comparator Output

NPN open-collector output for OUT1

Comparator Ready Output

NPN open-collector output for OUT2

Strobe Output

NPN open-collector output for OUT3

Synchronous Input

Non - voltage input for OUT1

Reset Input

Non - voltage input for OUT2

Auto-Zero Input

Non - voltage input for OUT3

Program Selection Input

Non-voltage input x 4 inputs

Statistical Processing Input

Non - voltage input for OUT1

Analog Output

10V x 2 outputs

Sub Mode

5-level comparator output

NPN open-collector output for OUT2

Comparator ready output

NPN open-collector output for OUT2

Strobe output

NPN open-collector output for OUT2

Statistical processing output

NPN open-collector output x 2 outputs

Function output

Selectable from focus, area check, and differential, NPN open-collector output x 2 outputs

BCD Mode

BCD output

Measurement data output (Sign + 7 digits), OUT1/OUT2 selectable, NPN open-collector output

BCD selection output

NPN open-collector output

BCD selection input

Non-voltage input

Synchronous Input

Non - voltage input for OUT2

Reset Input

Non - voltage input for OUT2

Auto-Zero Input

Non - voltage input for OUT2

Statistical Processing Input

Non - voltage input for OUT2

RS-232C Interface

Measurement data output and control I/O, printer (Baud rate can be selected uo to 115200 bps)

Video Output

Conforming to the NTSC system (PIN connector)

Major Functions

Power Supply Voltage

24 VDC ±10%

Current Consumption

1.2 A max.

Enclosure Rating

IP64 (Panel surface only)

Ambient Temperature

0 to +40°C

Relative Humidity

35 to 85%, (No condensation)

Measuring Heads

Measuring Range

0,3 - 30mm

Smalest Detectable Object

0,3mm

Light Source

GaN green LED

CCD Scanning Range

approx. 33mm

Measurement Accuracy

(plus minus) 2μm

Repeatability

(plus minus) 0,15μm

Monitor Camera

2400 samples/sec

Enclosure Rating

IP64

Ambient Temperature

0 to +50℃

Relative Humidity

35 to 85%, (No condensation)

The AXL.LDM.001 complies with the following European standards: EMC Directive: EN61326-1D60 Low-voltage directive: EN60825-1 (LED class 1)/EN61010-1 (Overvoltage category II, Pollution degree 2)

Thank you for contacting AXL Imperial.
We'll get back to you shortly!

Close window

Precision.

Speed.

Durability.

External Diameter
Measurement Machines
for in-line industrial use

Precise

Measurement

& lump detection

Down to

0,5μ

2-axis laser

measurement

3-axis available upon request

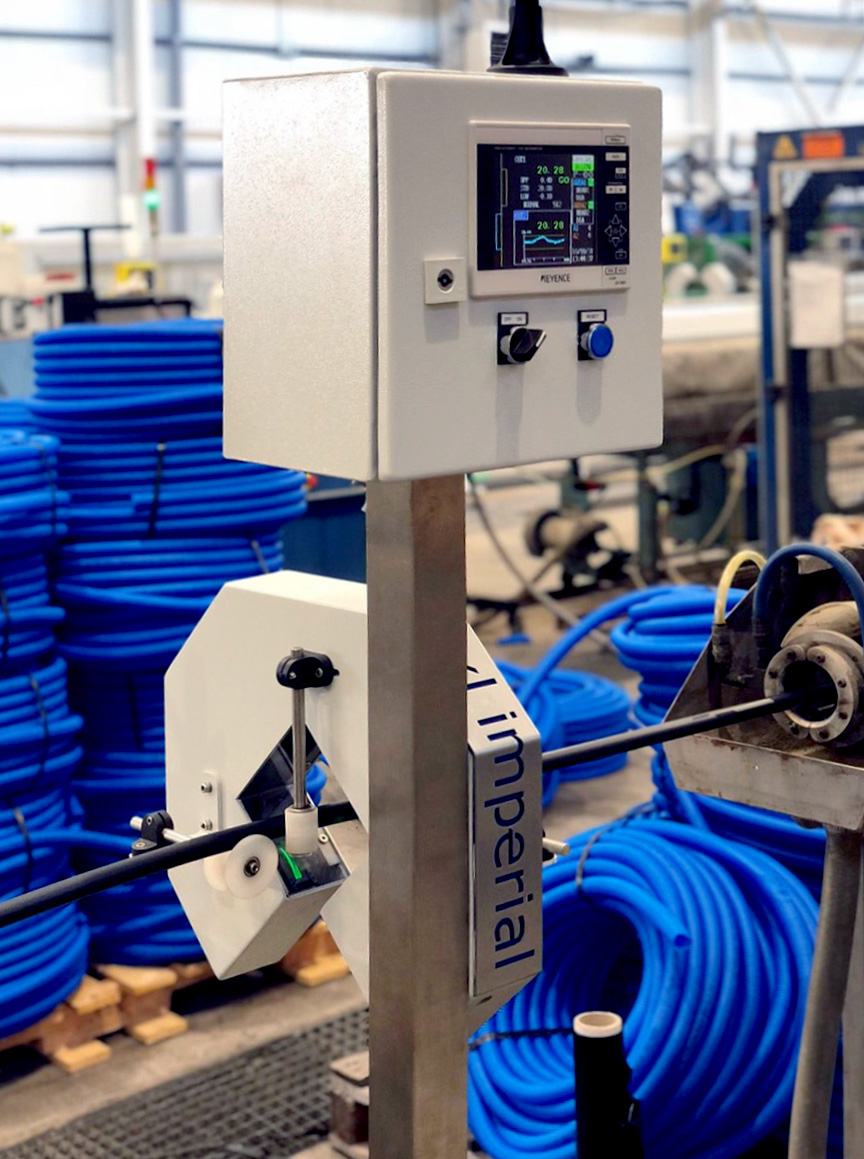

24/7 - 365

Industry never sleeps. Axl Imperial's parts are designed and assembled to allow operation under the most rough industrial conditions. The product measurements and inspections may be uninterupted 24/7 to serve the most demanding production needs.

Features

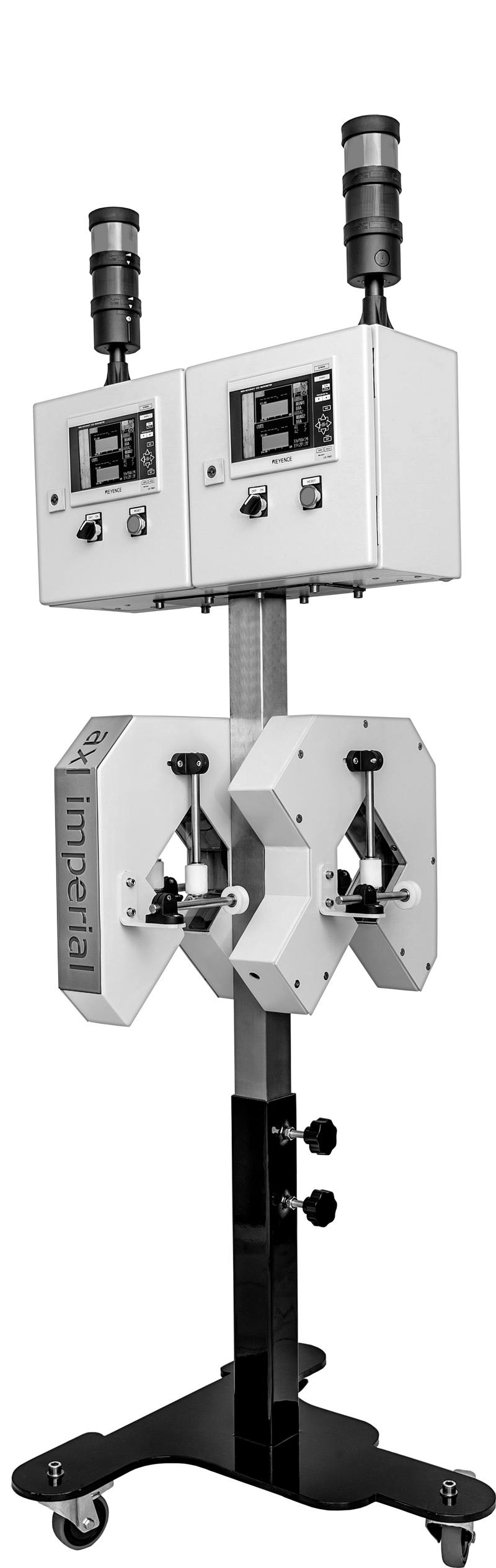

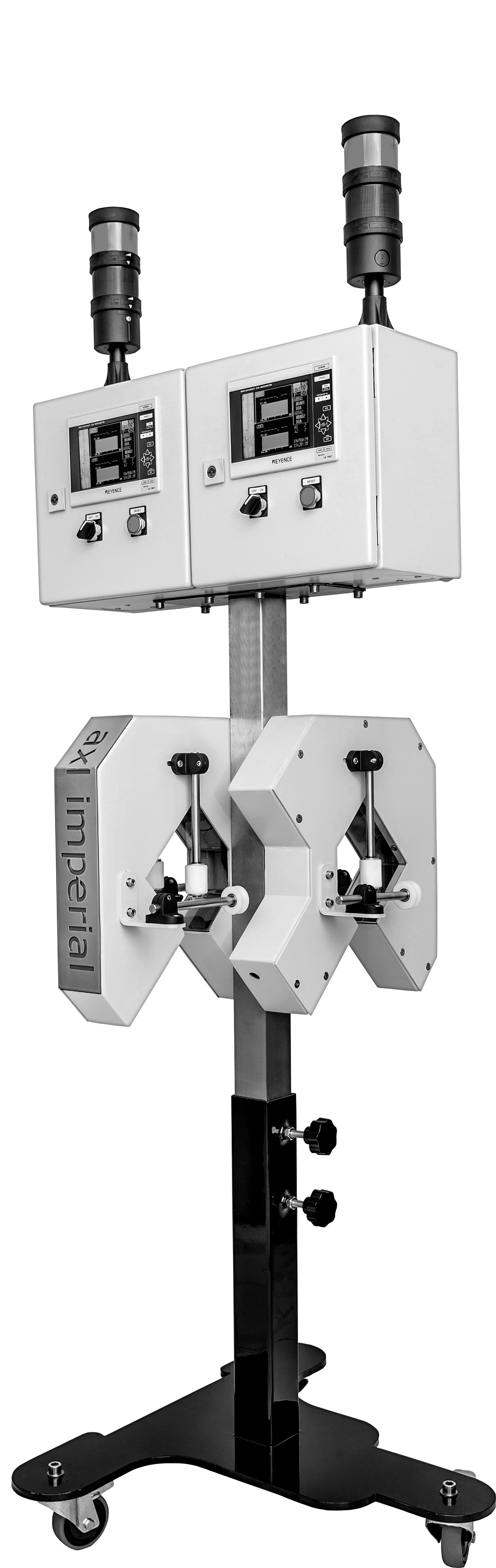

Showing AXL.LDM.002

Interface

LCD monitor with video image output

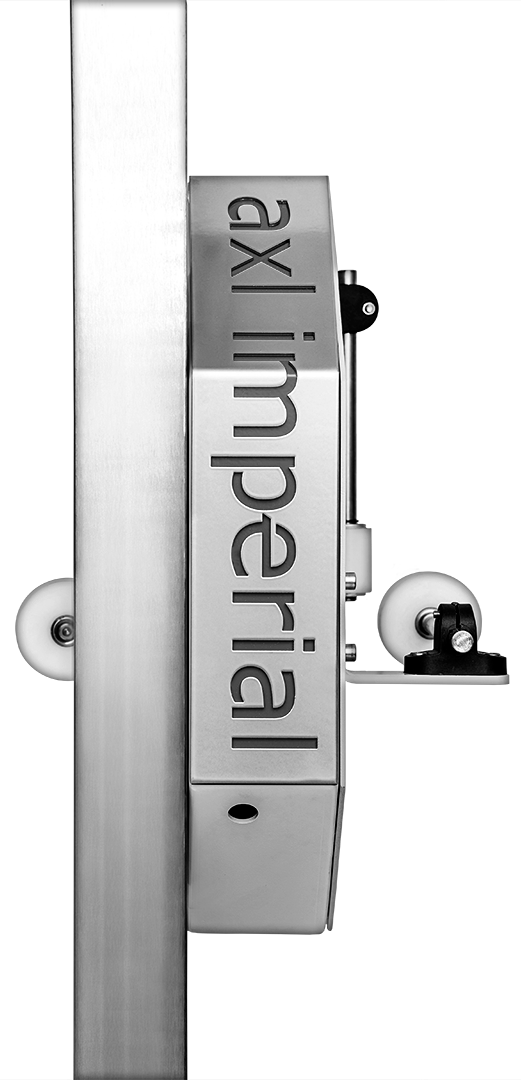

Heavy duty

Robust metal construction for harsh

industrial environments and

enhanced durability inside-out

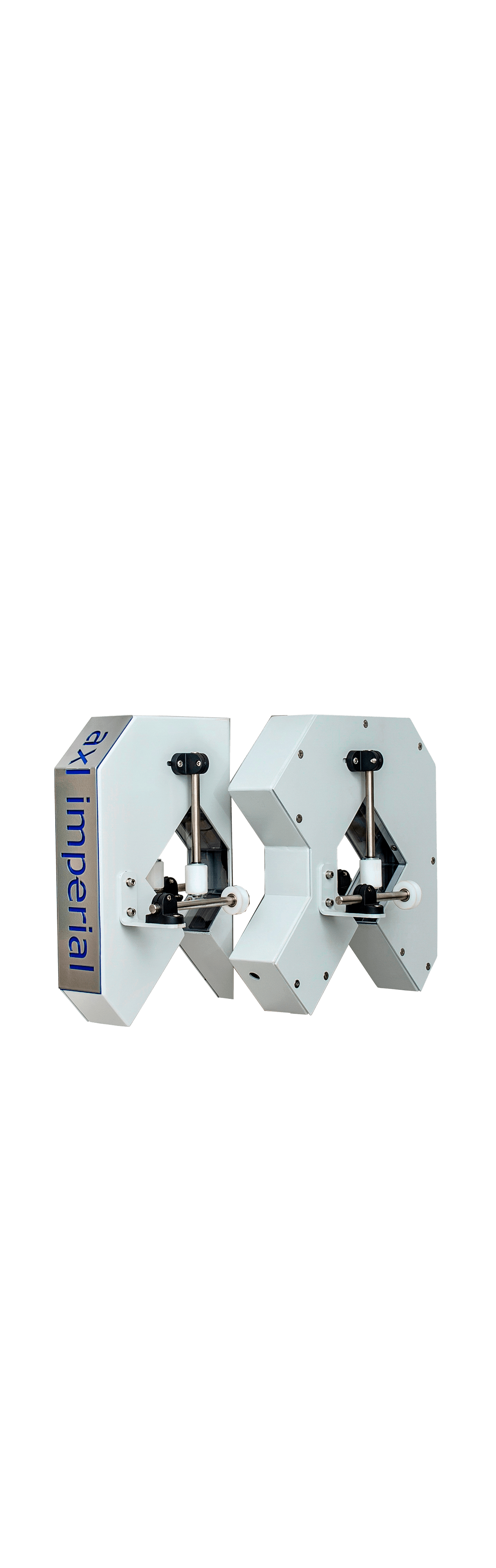

Sensor

Protection

Protective and durable Plexiglas

covers the sensor heads protecting

from water, dust and oils

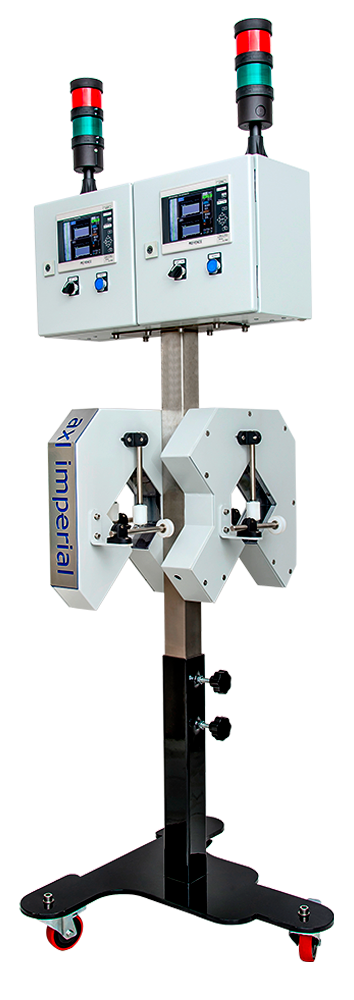

Double

Operation

Capable of handling two production

lines at once

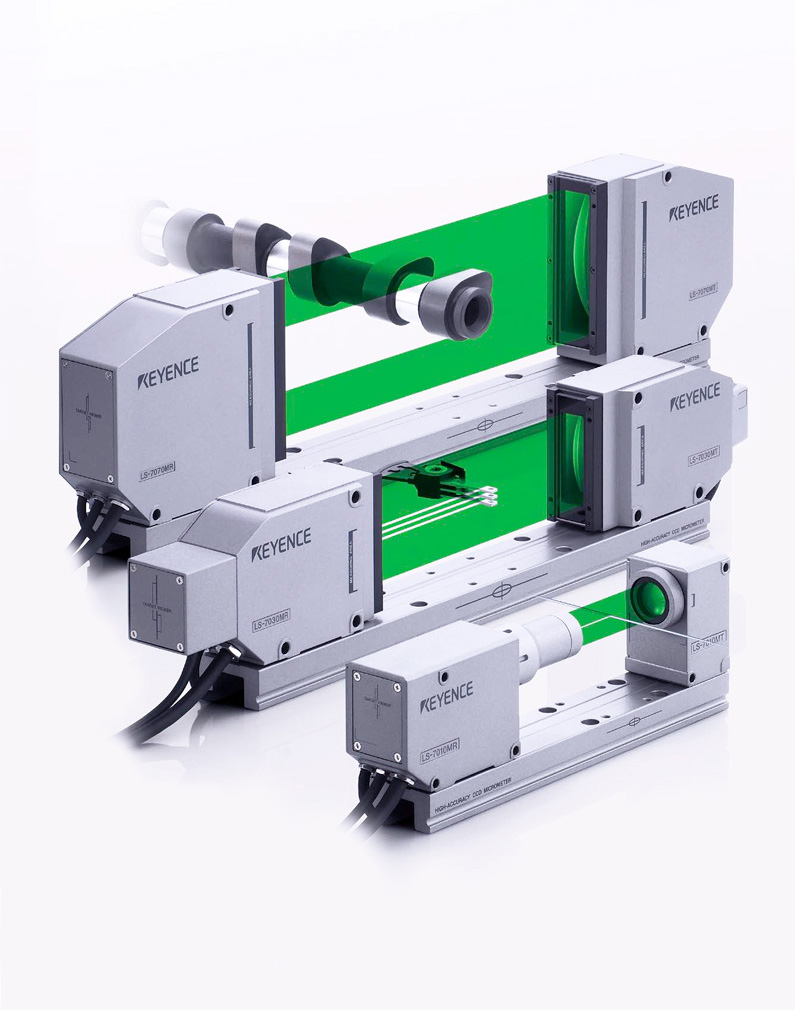

Sensors and

controllers

powered by

Keyence, one of the leading
sensor manufacturers worldwide
has provided the sensor heads
and controllers used to ensure
ultimate accuracy and top
performance.

Stability
in rough
environments

                        Extreme resistance to shock, drifts

                        and temperature variations.

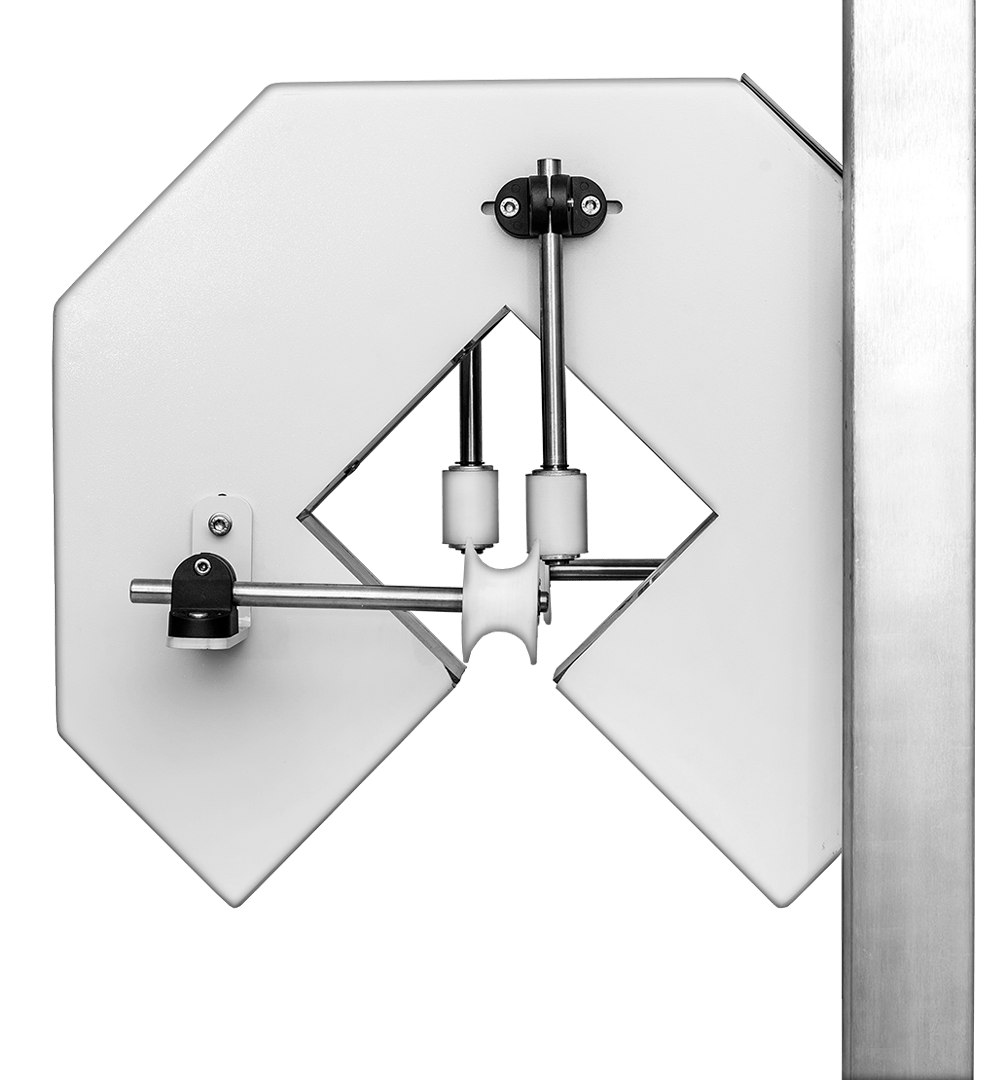

                        Variable length handles ensure

                        perfect alignment.

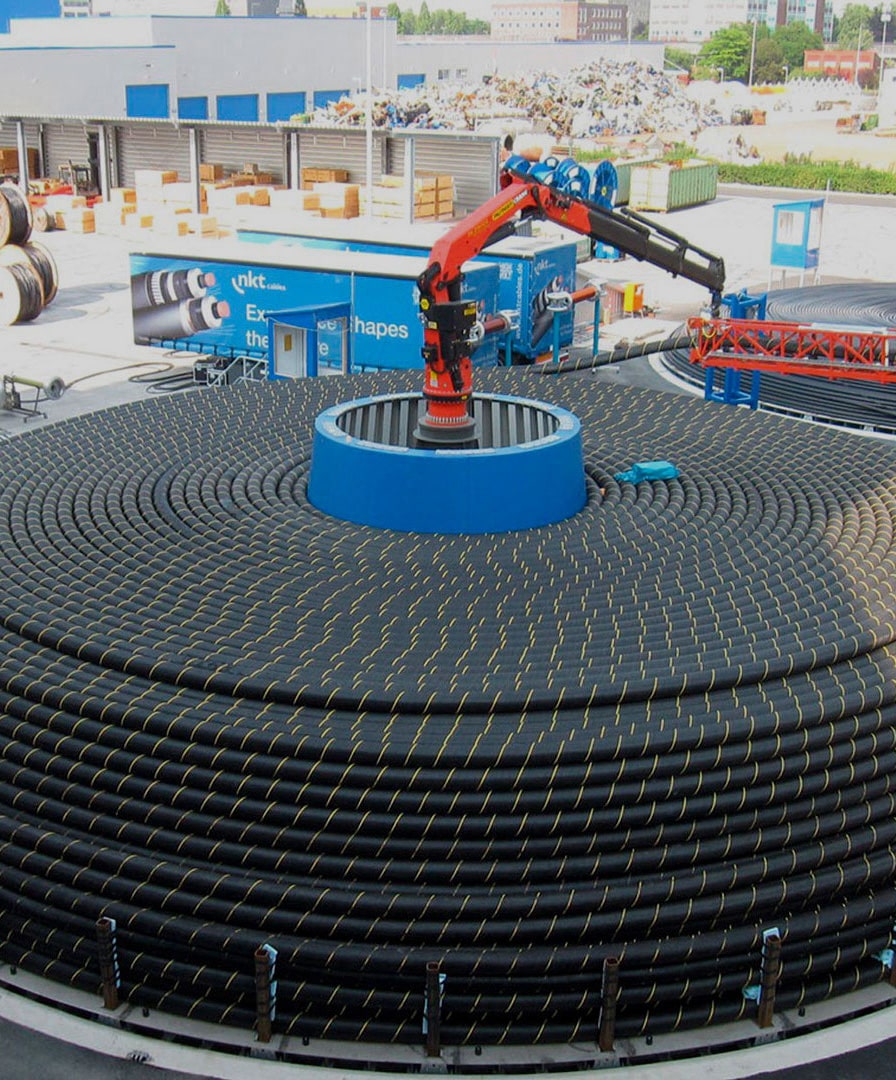

Suitable

for all types

of materials.

All kinds of

products.

Did you know?

AXL Imperial machines can be built to match your exact production needs in a large variety of measuring diameters and products. Send us your needs today and get a financial offer for a machine customized to your needs.

Our standard models

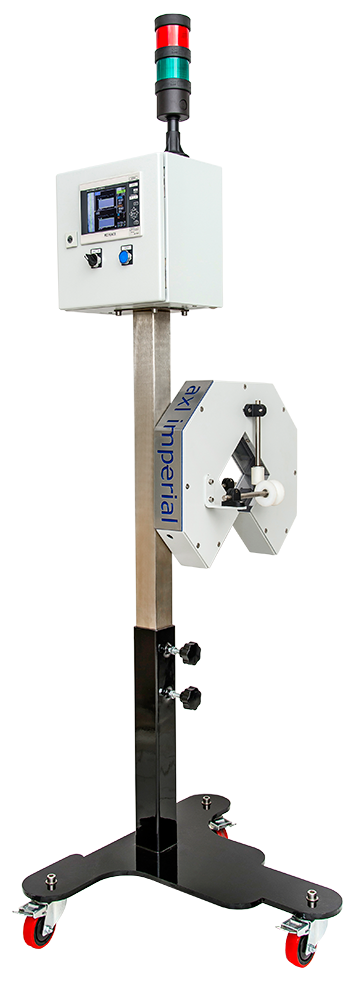

AXL.LDM.001
